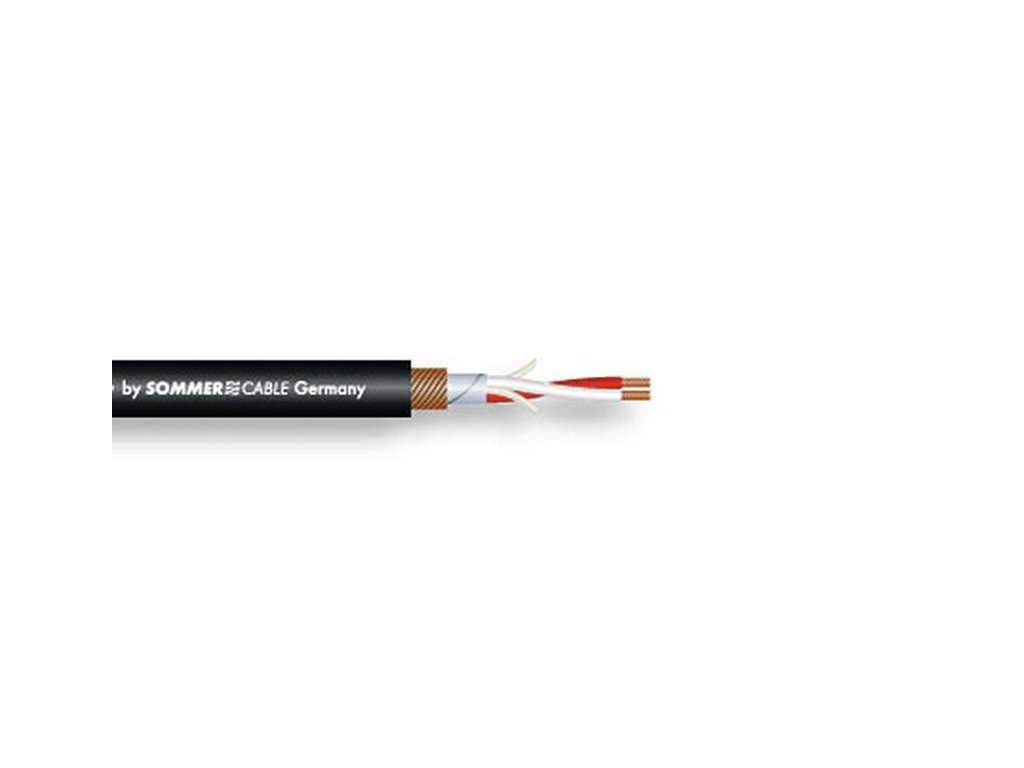

Sommer cable DMX cable 2x0.34 3pin 100m bk BINARY FRNC

Detailní popis produktu

AES/EBU- and DMX-conformant, highly flexible. Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum. Extremely robust with an especially strong jacket. Only a little more expensive than a standard microphone cable. For networking of scanners, lighting units, digital mixing boards, etc.. For indoor and outdoor installation. For connection of digital audio amplifiers, DAT-recorders, etc.. Made in Europe.

Construction: (2LI2YS 0.34 mm˛) (ST)CY
Jacket: PVC 7.0 mm
FRNC: 5.6 mm
No. of inner conductors: 2 x 0.34 mm˛ (AWG 22)
Copper strand per conductor: 19 x 0.15 mm
Conductor insulation: Foam/skin-PE 1.50 mm
Shielding: copper spiral shielding + aluminum steamed fleece
Shielding factor: 100 %
Temperature range: -25 C to +70 C
Fire load per m: 0.17 kWh (520-0051 F:0.23 kWh)
Weight per 1 m: 50 g
Packaging: 100 m roll
Electrical data
Capac. cond./cond. per 1 m: <65 pF
Capac. cond./shield. per 1 m: >115 pF
Cond. resistance per 1 km: 53 ohms
Insulation resist. per 1 km >1 Gohms
Surge impedance: 110 ohms
Cable-length: 100 m
Color: Black
Plug A: 1 x No connector/cable only
Plug B: 1 x No connector/cable only
