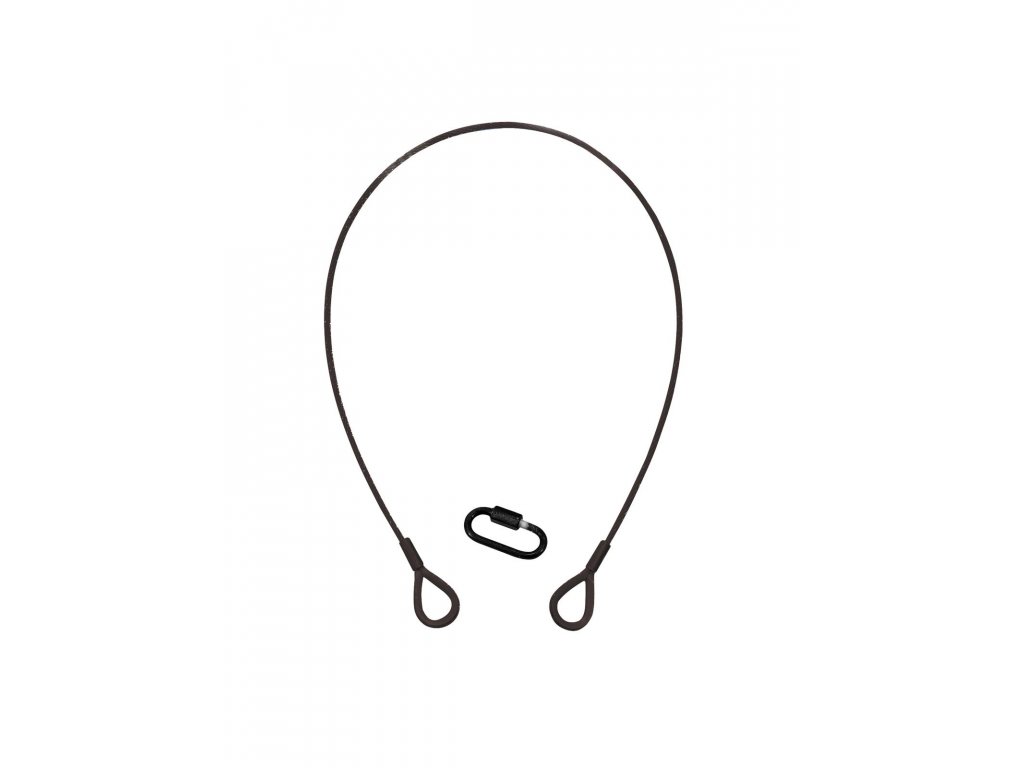

Lanko jistící 3 mm x 600 mm, až do 5 kg, černé, krabina typ B

Detailní popis produktu

5801049B EUROLITE Steel Rope (SC) 600x3mm black with thimblesEUROLITE Lifting ropes, safety bondsThe EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3: 2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4: 2008-06 and DIN 56927: 2009-03.The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.Use as attachment gearThese ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by table 2 of BGI 810-3: 2007-03. According to this table, the maximum load of this rope is 40 kg (single-stranded).Use as safety bondThe correct safety bond must be selected only by table 9 of BGI 810-3: 2007-03. According to this table, the maximum load of this safety bond is 5 kg.50301643 EUROLITE Quick Link Typ A-50 blackEUROLITE quick linksThe EUROLITE quick links comply with the current regulation of the German professional insurance association as summed up in BGI 810-3: 2007-03 Loads above persons. The quick links are constructed in accordance with the German standard DIN 56927: 2009-03.The quick links are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can secure loads above persons with these quick links in all areas where the BGV C1 is required. Approved safety ropeSuitable for securing loads above persons Round strand rope 6 x 19M with steel core With two thimbles 3.5 mm quick link (form A) included 5801049B EUROLITE Steel Rope (SC) 600x3mm black with thimblesInstallation rope, safety bond, safetyRound strand rope 6 x 19 with steel core With two thimbles Suitable for installing and securing loads above persons 3 x 600 mm WLL 100 kg 50301643 EUROLITE Quick Link Typ A-50 blackQuick linkForm A (short) Galvanized Identification number: 50 Stamp: DIN 56927 A 50 Test report according to DIN EN 10204 as download

Secured weight (BGV C1): max. 5 kg
Maximum load WLL (5-fold): 100 kg
Design of the core: 6 x 19 WSC
Strength classification: 1770
Standard: DIN EN 12385-4: 2008-06, DIN 56927: 2009-03
Nominal tensile strenght of rope: 1770 N/mm
Wire surface: Zinc-plated
Color: Black
Length: 60 cm
Diameter: 3 mm
Lengthweigth: 0,0311 kg/m
Temperature range: -40 C to +100 C
Rope type: Round strand rope
5801049B EUROLITE Steel Rope (SC) 600x3mm black with thimbles
Maximum load WLL (5-fold): 100 kg
Design of the core: 6 x 19 WSC
Standard: DIN EN 12385-4: 2008-06, DIN 56927: 2009-03
Nominal tensile strenght of rope: 1770 N/mm
Wire surface: Zinc-plated
Color: Black
Length: 60 cm
Diameter: 3 mm
Weight: 0,05 kg
Lengthweigth: 0,0311 kg/m
Temperature range: -40 C to +100 C
Rope type: Round strand rope
50301643 EUROLITE Quick Link Typ A-50 black
Maximum load WLL (5-fold): 100 kg
Standard: DIN 56927: 2009-03,
opening: 0-5,5 mm
Length: 29 mm
Width: 35 mm
Depth: 19 mm
Diameter: 3,5 mm
Weight: 0,01 kg
Temperature range: -40 C to +100 C
Form: A - small
